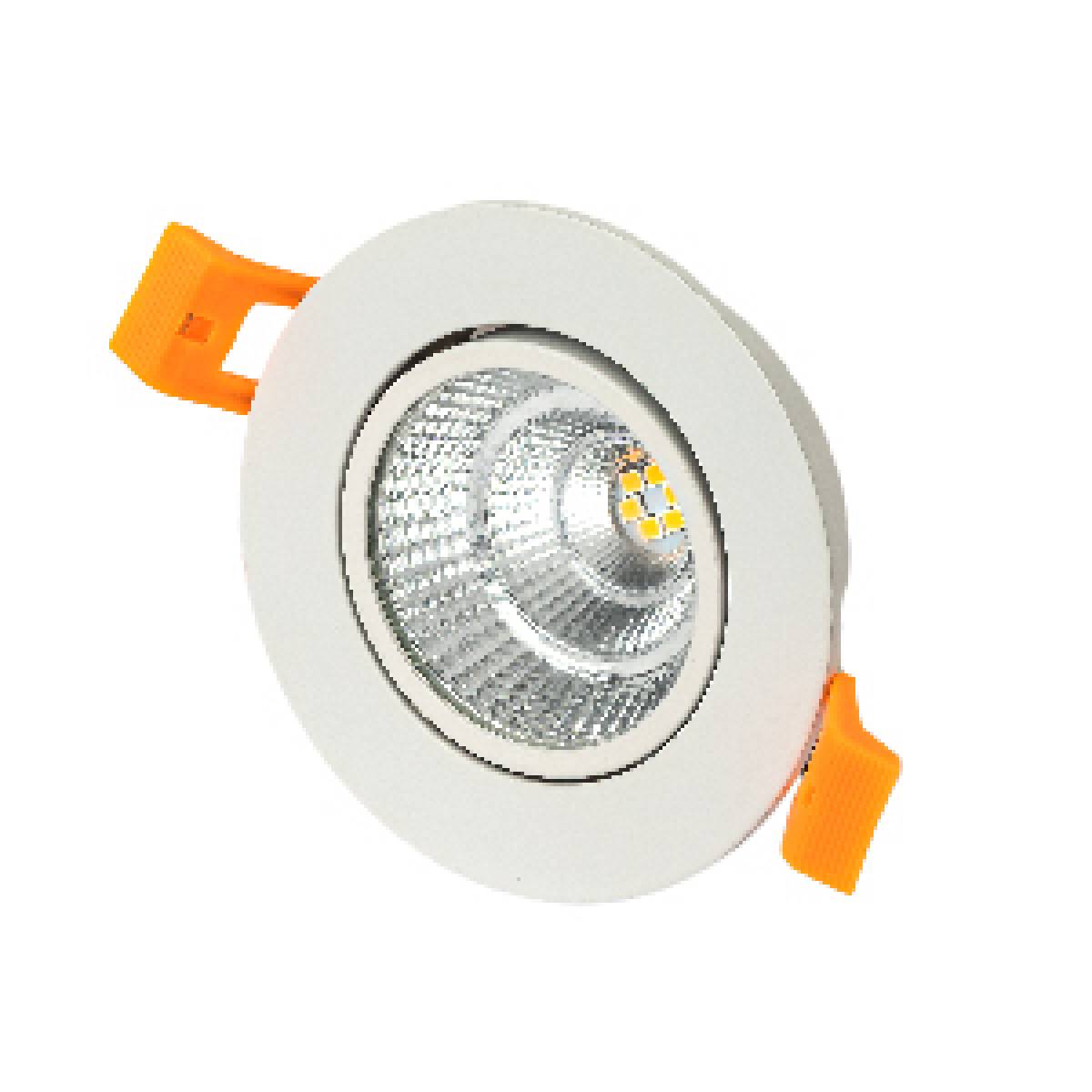

Salient features of LED COB Lights:
- Utilizing compact COB (Chip-on-Board) LED technology, this product offers powerful illumination in a small form factor.
- Axiom ensures that its products meet international quality standards, guaranteeing high performance, reliability, and safety.
- The spotlight/COB is crafted with precision and attention to detail, enhancing the aesthetics and ambiance of interior spaces while adhering to strict quality guidelines.
Specifications of LED COB Lights:
| Model | Luminaire | Driver | Luminare | |||||||||
| Lumens (lm/meter) | Efficiency (Lm/ Watt) | CCT | CRI | Operating Voltage Range | Output Voltage | Output Current | No Load Voltage | Internal Surge | Output Short Circuit Protection | Output Open Circuit Protection | AC Isolation | |
| 3 W | 150 – 300 | 75 | 3000k, 4000k, 6500k | >75 | 100-300V | 18V | 150 mA (max) | 30 V (max) | 2.5 KV | Yes | Yes | Yes |
| 7 W | 450 – 600 | 75 | 3000k, 4000k, 6500k | >75 | 100-300V | 18V | 270 mA (max) | 30 V (max) | 2.5 KV | Yes | Yes | Yes |
| 15 W | 1250 – 1450 | 90 | 3000k, 4000k, 6500k | >75 | 100-300V | 36V | 380 mA (max) | 54 V (max) | 2.5 KV | Yes | Yes | Yes |
| 20 W | 1700 – 1900 | 90 | 3000k, 4000k, 6500k | >75 | 100-300V | 36V | 480 mA (max) | 54 V (max) | 2.5 KV | Yes | Yes | Yes |
| 25 W | 2150 – 2350 | 90 | 3000k, 4000k, 6500k | >75 | 100-300V | 36V | 650 mA (max) | 54 V (max) | 2.5 KV | Yes | Yes | Yes |
| 30 W | 2600 – 2800 | 90 | 3000k, 4000k, 6500k | >75 | 100-300V | 36V | 750 mA (max) | 54 V (max) | 2.5 KV | Yes | Yes | Yes |
